Description

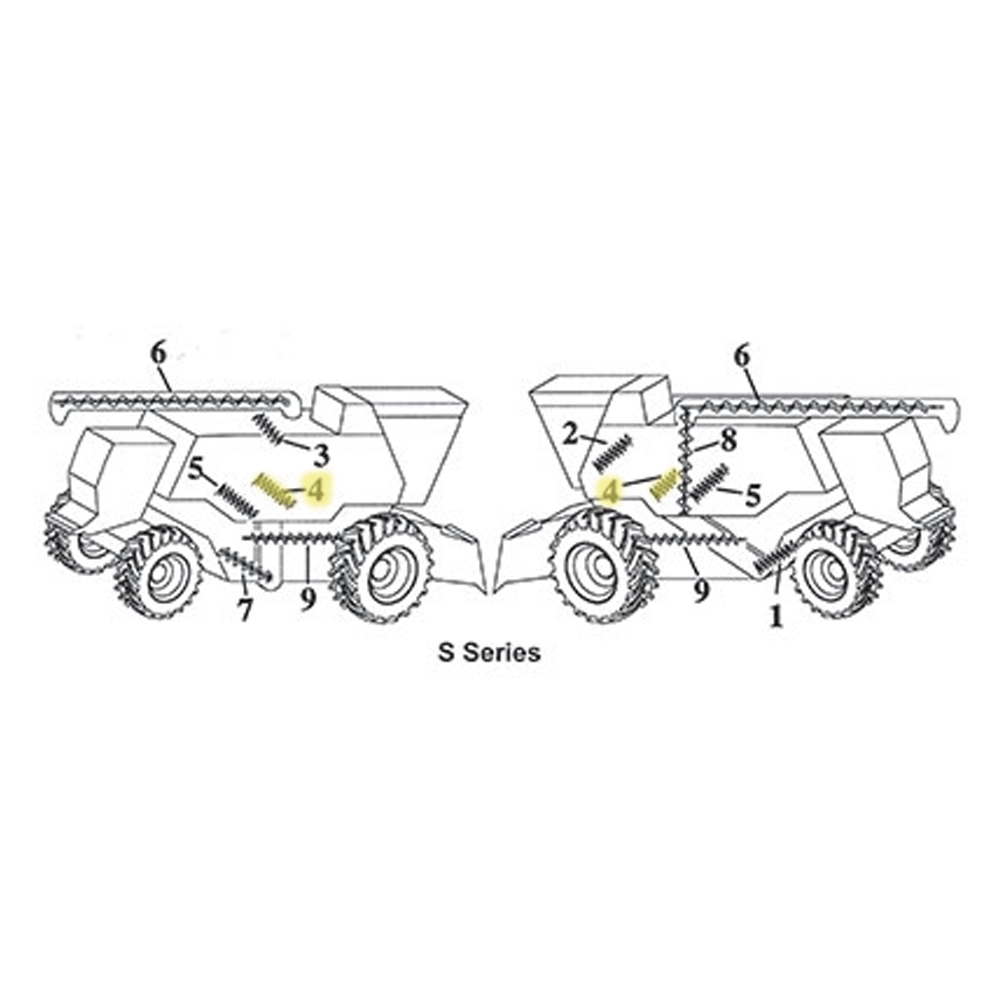

Cross Auger, Front, High Unloading Rate; to fit John Deere® S660, S670, S670 HILLMASTER, S680, S680 HILLMASTER, S685, S685 HILLMASTER, S690, S690 (European SN <745100), S690 HILLMASTER, S690 HILLMASTER (European SN <745100), 9660STS, 9670STS, 9760STS, 9770STS, 9860STS, 9870STS series combines.
Replaces JD # AXE18081, AH202958

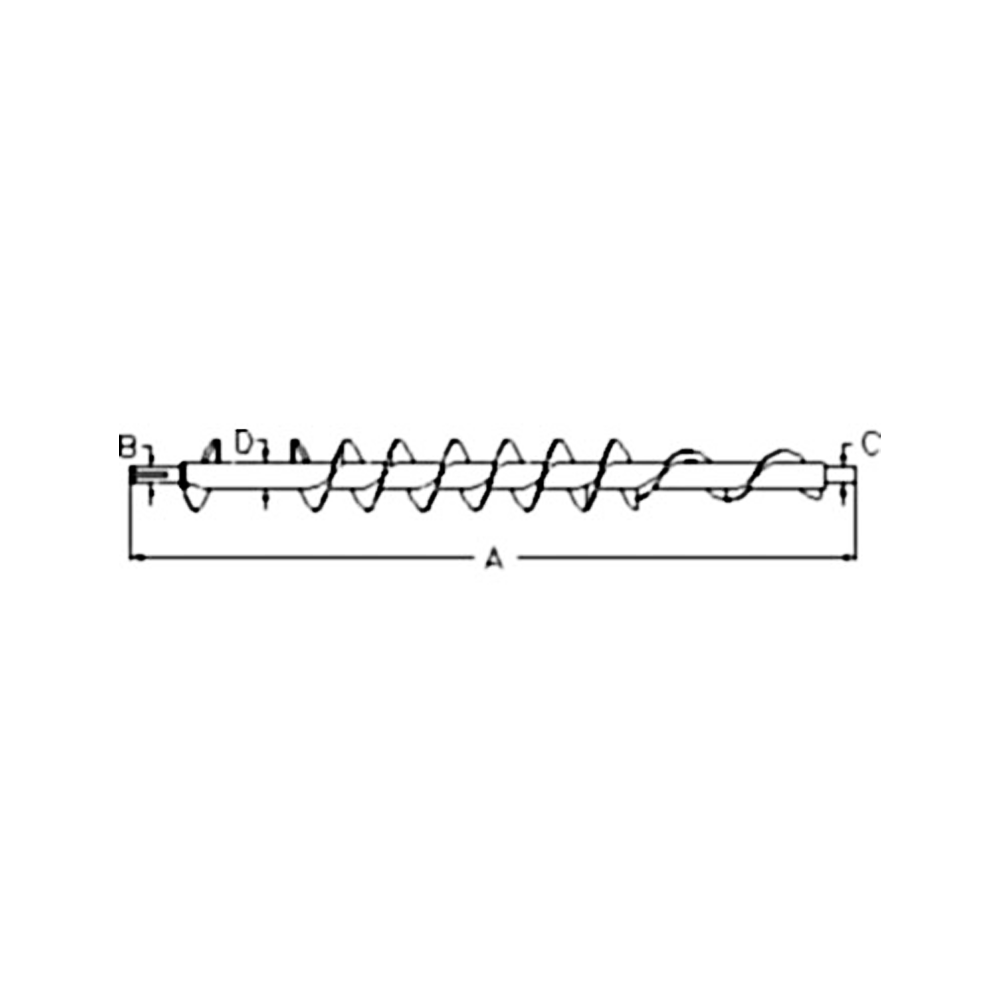

Dim A (1) |
A- 112.50″ |
Dim B (2) |
B- 1.375″ |
Dim C (3) |
C- 1.375″ |
Dim D (4) |
D- 2.50″ |
Dim E (5) |
9.50″ RH flighting |
Flighting Diameter |
9-1/2″ |
Overall Length |
112.75″ |
Shaft Diameter |
1.375″ |
Tube Size |
2.00″ |
Additional information
| Weight | 85.0 lbs |
|---|
