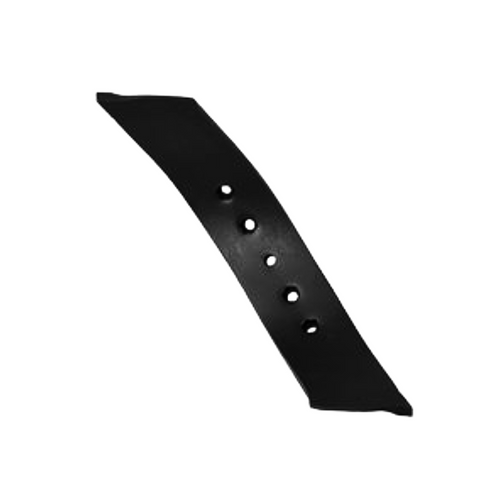

4" right-hand "MAX" twisted chisel plow point with a slash point, 3/4" thick x 4" x 23". It is 50% thicker than standard 1/2" points, so there is more steel to wear through in abrasive soil.
Key Features
- 3/4" thick: 50% thicker than standard 1/2" points, and in the field they last at least 2:1 vs. standard 1/2" steel
- Right-hand slash point with an aggressive diagonal leading edge for penetration and residue mixing
- High-carbon steel, heat-treated
- 5 countersunk holes on 2-1/4" centers for 1/2" hex bolts
- Run in alternating left- and right-hand pairs; pair with RLT1052MAX (LH)
Fits
- Chisel plows and soil savers with 2-1/4" center bolt spacing, including Landoll®, Glencoe®, Brillion®, Krause®, Bush Hog, Deutz-Allis, Kelly, Kent, Massey Ferguson and Sunflower
Replaces OEM #
SL124 MAX-R
Specs
- Dimensions: 3/4" thick x 4" wide x 23" long
- Hand: right (twisted)
- Point: slash
- Holes: 5 countersunk, 2-1/4" centers, 1/2" bolts
- Material: high-carbon steel, heat-treated
Recommended Hardware (Grade 8)
- RLH43576-Y: 1/2-13 x 1-1/2" HHCS Grade 8, yellow zinc, USA made
- RLH43586: 1/2-13 x 2-3/4" HHCS Grade 8, yellow zinc, USA made
- RLH100250: 1/2-13 heavy hex nut
Good to Know
Built for high-impact, high-draft conditions when installed with Grade 8 hardware. A good choice for large operations in abrasive soil and for replacing brittle cast or thin OEM-style points. Measure your bolt spacing or check your manual to confirm fit.
OEM names and numbers are for reference only.
